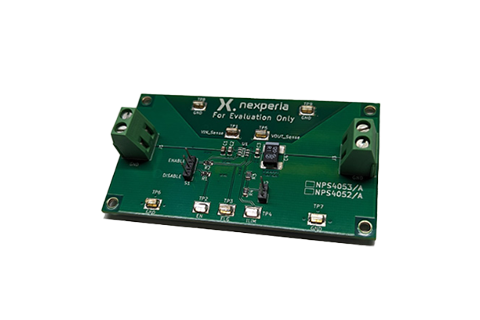

NPS4053負載開關評估板

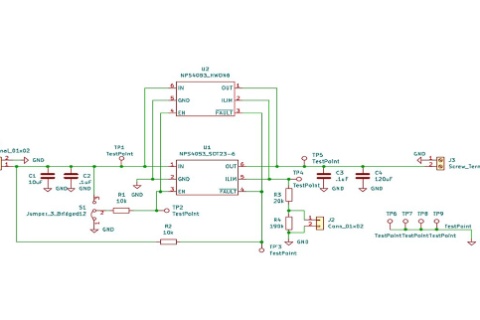

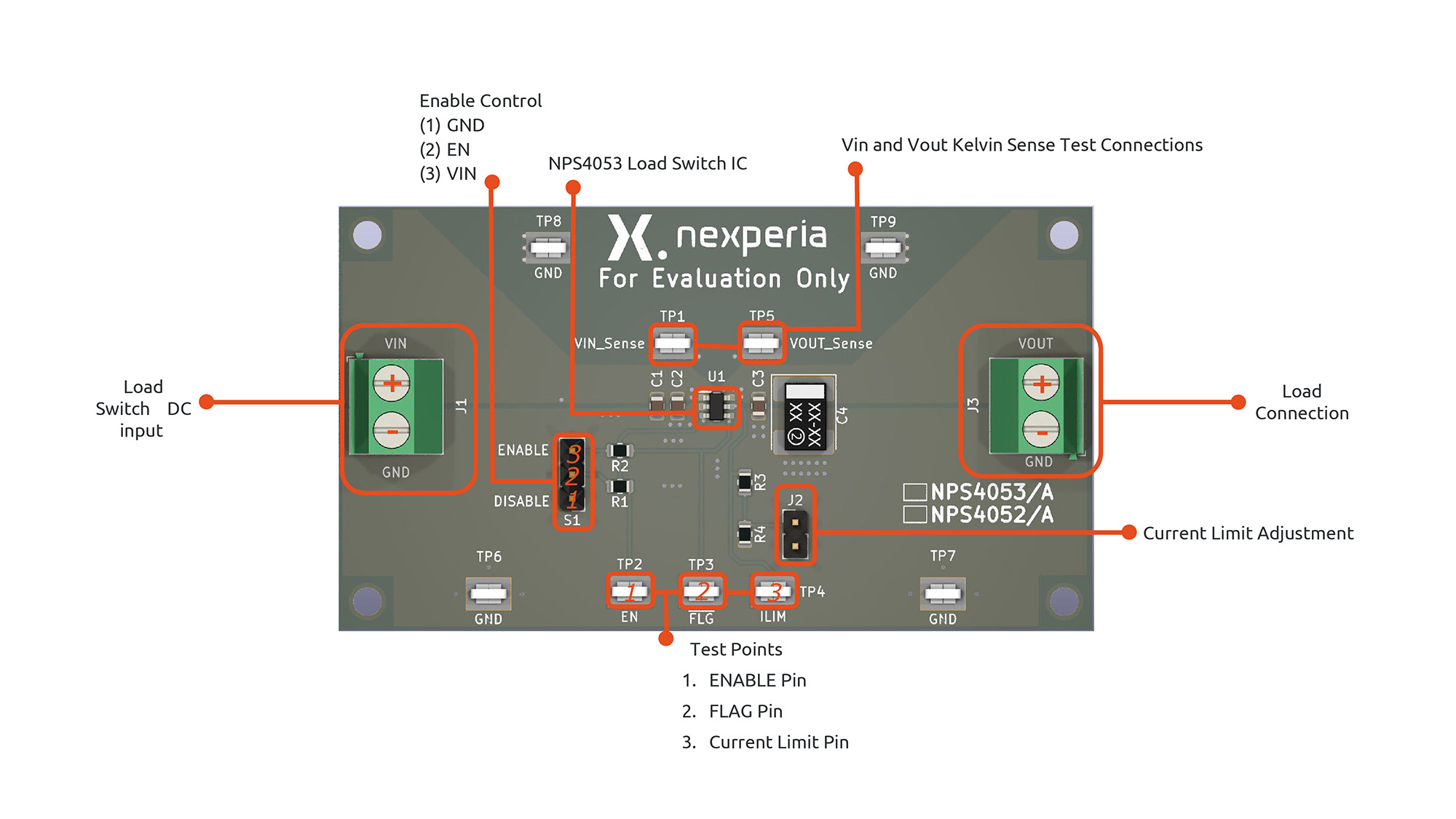

NPS4053評估板是專為Nexperia負載開關系列設計的專用PCB。PCB上有GND、VIN、VOUT、FLG和EN測試點，便于連接示波器探頭。其設計充分考慮了用戶友好性，簡化了負載開關動態特性的測試和分析過程，如RON和平滑接通測量。
NPS4053負載開關評估板
.jpg)
主要特性和優勢
- 輸入電壓可由測試點提供，VIN范圍為2.5 V至5.5 V。
- 去耦電容連接到評估板輸入端的VIN，靠近負載開關IC。輸出端與此類似。
- 需要準確測量輸入或輸出時會使用VIN_Sense和VOUT_Sense。測量VIN至VOUT的壓降時，會使用這些開爾文源極連接進行RON測量。
板上的產品 (4)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NPS4053GH | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
NPS4053GV | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
|
NPS4053GH-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
|
NPS4053GV-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nevb-nps4001-load-switch-evaluation-board | NEVB-NPS4001 load switch evaluation board | Evaluation board | 訂單 | |
|
|
nevb-nps4069-load-switch-evaluation-board | NEVB-NPS4069 load switch evaluation board | Evaluation board | 訂單 |
最新視頻
板上的產品 (4)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NPS4053GH | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
|
NPS4053GV | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
|
NPS4053GH-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
|
|
NPS4053GV-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nevb-nps4001-load-switch-evaluation-board | NEVB-NPS4001 load switch evaluation board | Evaluation board | 訂單 | |
|
|
nevb-nps4069-load-switch-evaluation-board | NEVB-NPS4069 load switch evaluation board | Evaluation board | 訂單 |
文檔 (2)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| nexperia_load_switch_family_2025 | NPS4053, NPS1001, NPS4069, NPS4001 Load Switch leaflet | Leaflet | 2025-08-08 |
| UM90023 | NEVB-NPS4053 load switch evaluation board | User manual | 2024-08-06 |
